| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | CoatTech |
| إصدار الشهادات: | CE |
| رقم الموديل: | CT-الإعدادية A18 |
| الحد الأدنى لكمية: | 1 |
| الأسعار: | USD1000-USD6000/SET |
| تفاصيل التغليف: | مع فيلم منتظم والكرتون |
| وقت التسليم: | بعد 15 يومًا من الإيداع |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 30 مجموعة / شهر |
| اسم: | CT-الإعدادية A18 | باستخدام الطاقة:: | الديزل والغاز والبخار أو الكهربائية أو غيرها من الخيارات |
|---|---|---|---|
| الباب الرئيسي:: | طية النمط أو نمط المتداول الكهربائي | المحرك:: | العلامة التجارية الصينية أو العلامة التجارية للاستيراد |
| السيطرة على sytem:: | تبديل نمط أو التحكم في شاشة اللمس PLC | حائط:: | Metal Sheld ، EPS ، صخرة الصخور من PU للخيار |
| لون:: | خيار أبيض أو آخر | طلب:: | الحافلات/شاحنة أو غيرها من المنتجات المعدنية |
| مصادر الطاقة:: | الماء ، الكهرباء ، الغاز | طلاء: | 10-50um |
| خافت:: | كما يتطلب | ||
| إبراز: | Drive-through linear sanding station,High-volume workflow sanding station,Front rear access sanding curtains,High-volume workflow sanding station,Front rear access sanding curtains |
||

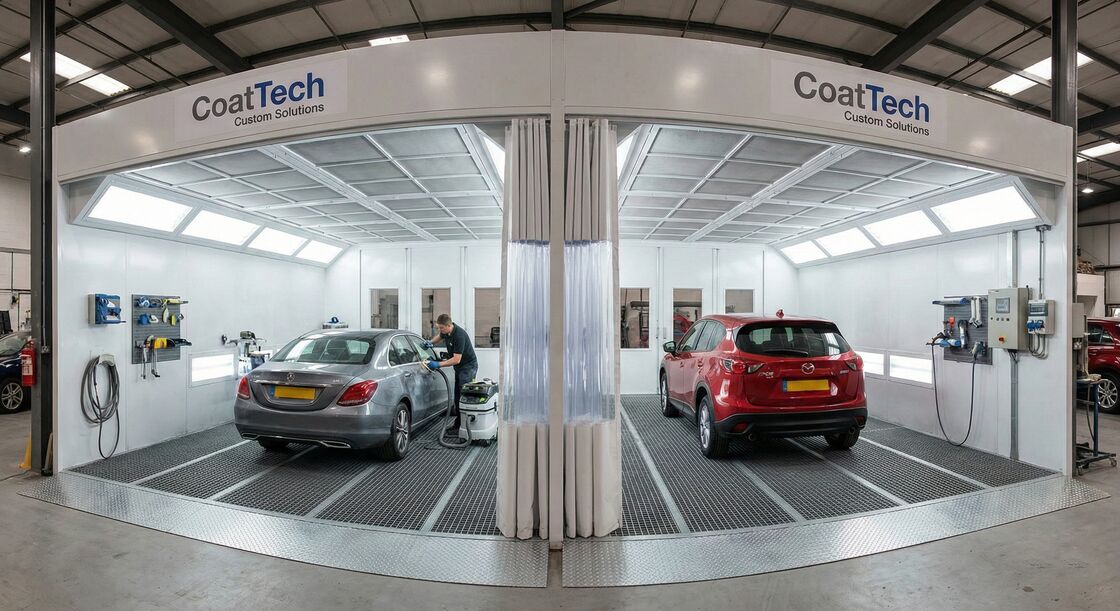

CoatTech Drive-Through Linear Sanding Station with Front and Rear Access Curtains for High-Volume Workflow
Introduction:
CoatTech Drive-Through Linear Sanding Station with Front and Rear Access Curtains for High-Volume Workflow Introduction: Designed for assembly lines or high-traffic shops, this unit improves efficiency by allowing vehicles to flow linearly through the workspace.
Technical Specification Sheet
| Model | Inner Size (mm) | Outer Size (mm) | Total Airflow | Heating | Total Power | Application |
| CT-Prep A8 | 7000×4000×2700 | 8500×5500×3400 | 18,000 m³/h | None | 13 kW | Assembly Line |
| System | Component | Description | Optional |
| Structure | Access | PVC Curtains on Front and Rear (Drive-Through) | Motorized Curtains |
| Extraction | Side-Draft Columns (Left & Right Walls) | - | |
| Air System | Fan Position | Roof Mounted or Side Mounted | - |
| Basement | Type | Optional (Flat Floor or Raised) | - |
| Lighting | Layout | Longitudinal Ceiling Lights | - |

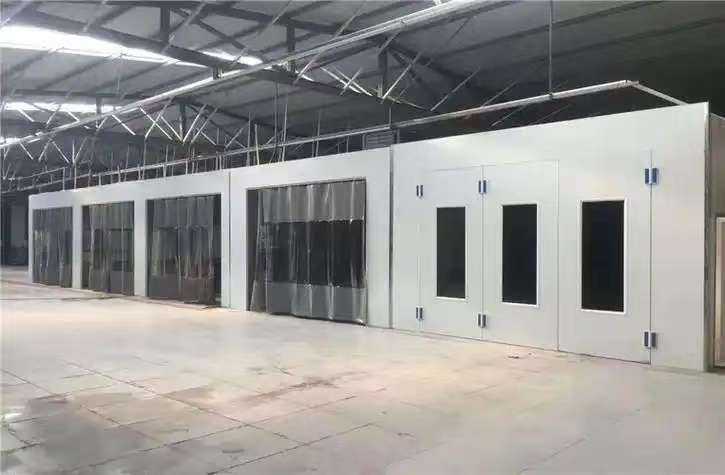

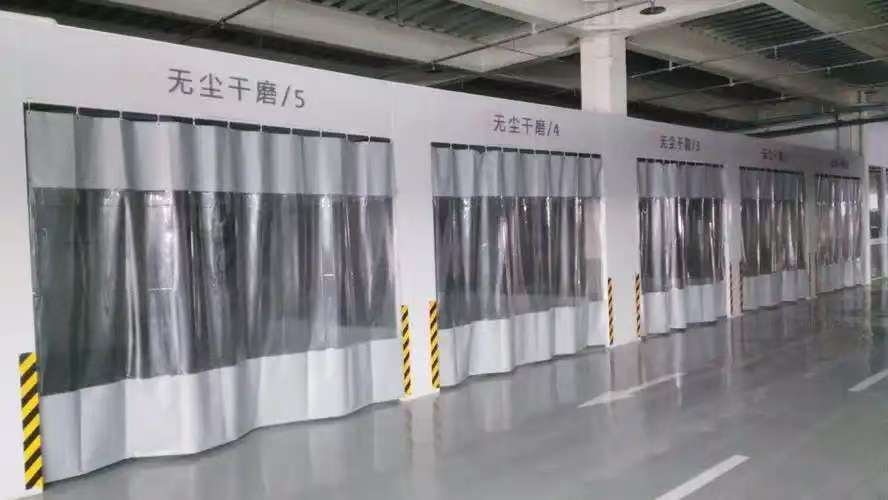

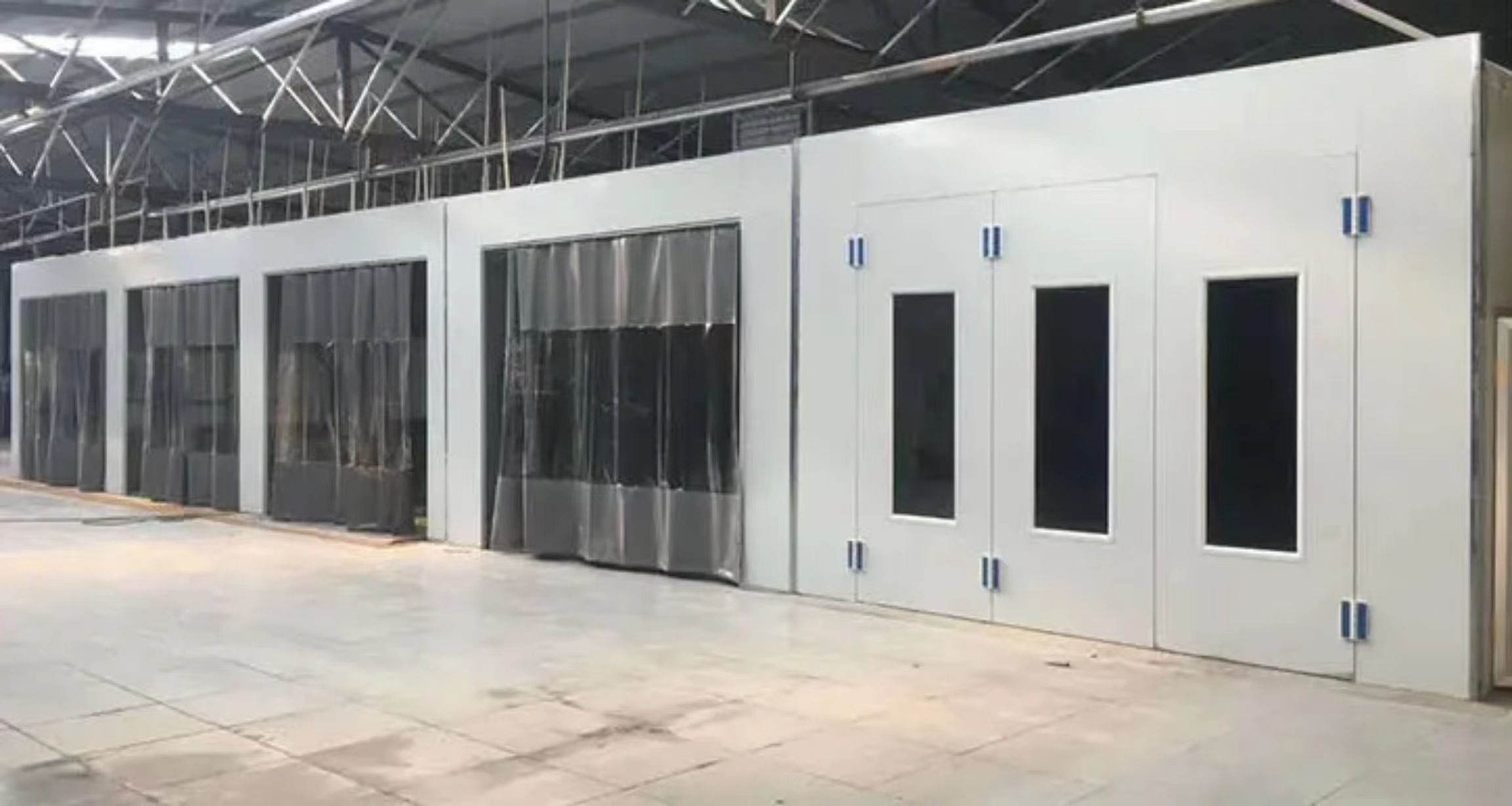

PVC Curtain Enclosure Unlike a fixed booth, the Prep Station uses sliding PVC curtains.
Convenience: Easily slide curtains open to move cars in and out quickly.
Visibility: Transparent windows allow the manager to monitor work progress.
Durability: Resistant to solvents and wear.
Energy Saving Strategy Don't turn on your 15kW Paint Booth just to spray a bumper with primer. Use the Prep Station (5.5kW) instead. It creates a cleaner environment than the open shop floor but costs a fraction of the price to operate.
Q: Can I spray the final topcoat (Color/Clear) in this Prep Station? A: Technically yes, but we do not recommend it for high-quality finishes. The Prep Station is not a sealed environment like a Spray Booth, so there is a higher risk of dust. It is best used for Primer and Putty.
Q: Does it need a metal base (basement)? A: No. The most popular model is the "Rear Draft" version. It sits on your existing flat concrete floor and sucks air out through a filter box on the back wall. This saves money on ramps and steel bases.
Q: Can you make a station for 3 cars at once? A: Yes, we can connect multiple units together (side-by-side) to create a multi-bay sanding line.
Q: Is the fan unit noisy? A: We use a dynamic balanced centrifugal fan with a belt drive, which keeps noise levels below 75dB.
