| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | CoatTech |
| إصدار الشهادات: | CE、SGS |
| رقم الموديل: | CT-007 |
| الحد الأدنى لكمية: | 1 قطعة |
| الأسعار: | USD100-USD5000/SET |
| تفاصيل التغليف: | مع فيلم منتظم والكرتون |
| وقت التسليم: | بعد 15 يومًا من الإيداع |
| شروط الدفع: | T / T ، D / A ، ويسترن يونيون ، موني جرام |
| القدرة على العرض: | 200Set/Monh |
| مصدر الطاقة: | كهرباء | الشهادات: | CE ، ISO ، إلخ. |
|---|---|---|---|
| مادة: | مواد متعددة | معدل التدفق: | يعتمد على النموذج |
| سعة: | يعتمد على النموذج | المكونات المضمنة: | تصفية خرطوشة ، أجهزة التثبيت |
| طريقة الترشيح: | تصفية الوسائط | مقاس: | قابلة للتخصيص |
| إبراز: | water wash spray booth for painting,high-volume spray booth with filtration,waterfall filtration spray booth system,high-volume spray booth with filtration,waterfall filtration spray booth system |
||

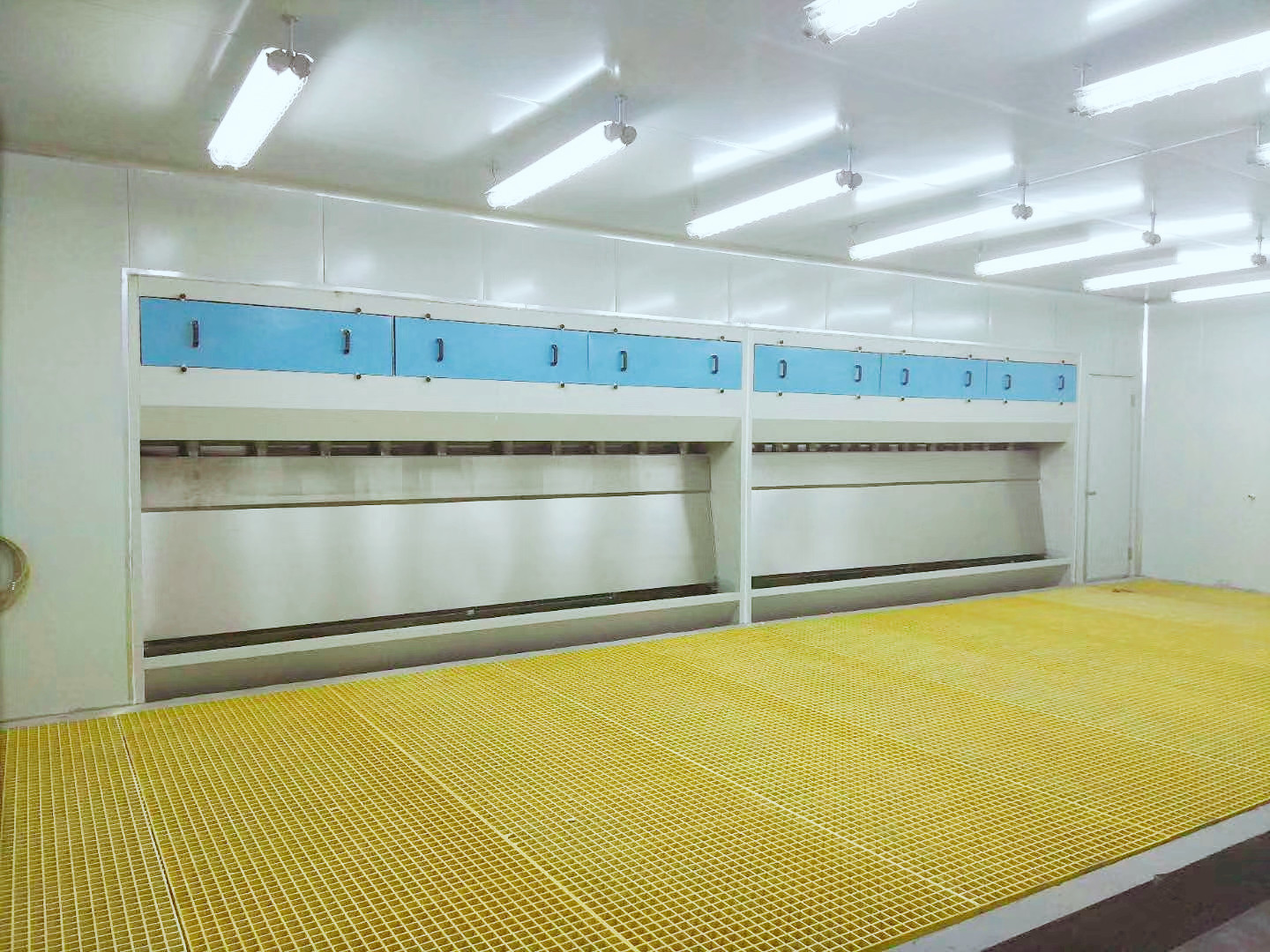

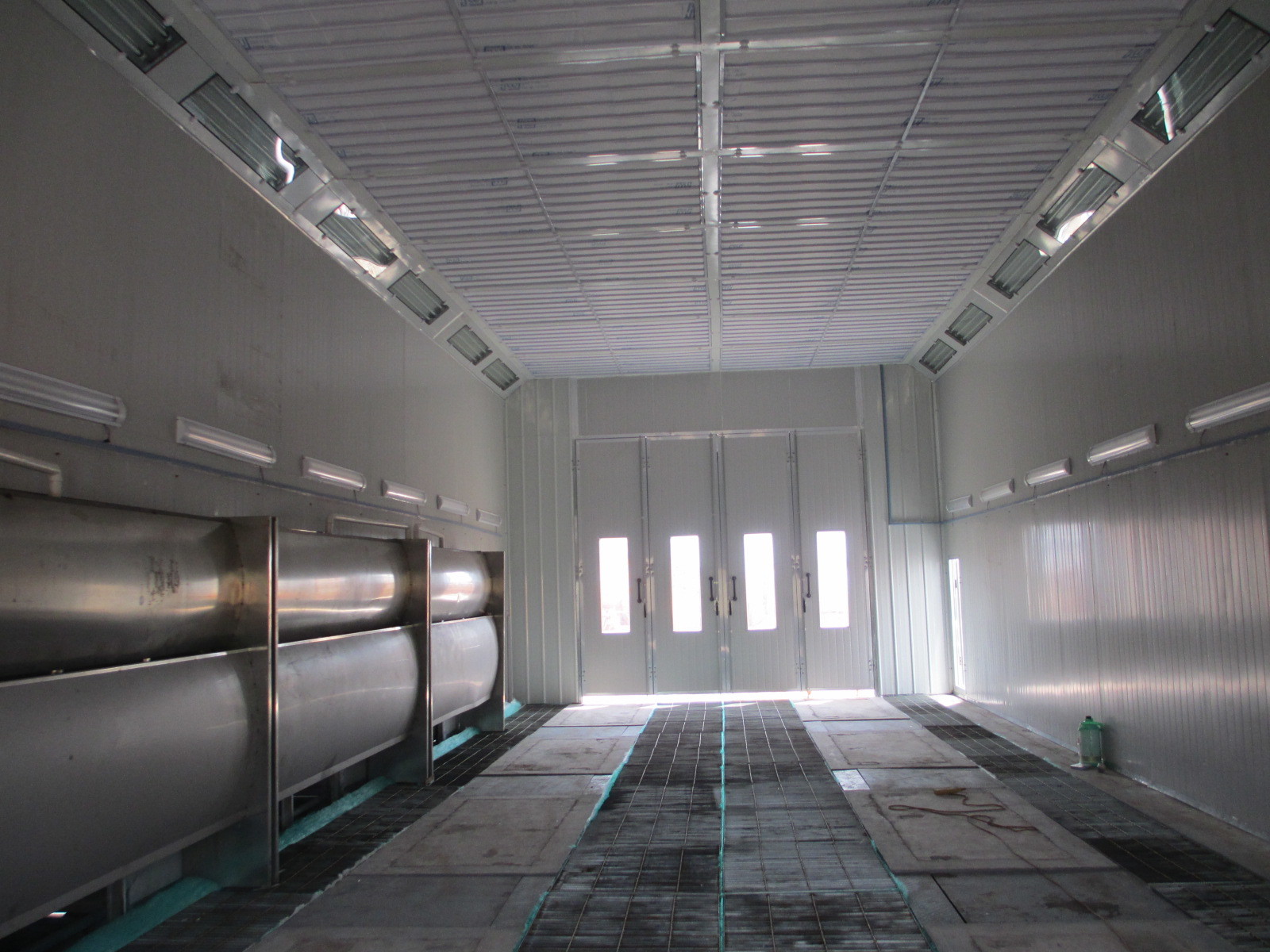

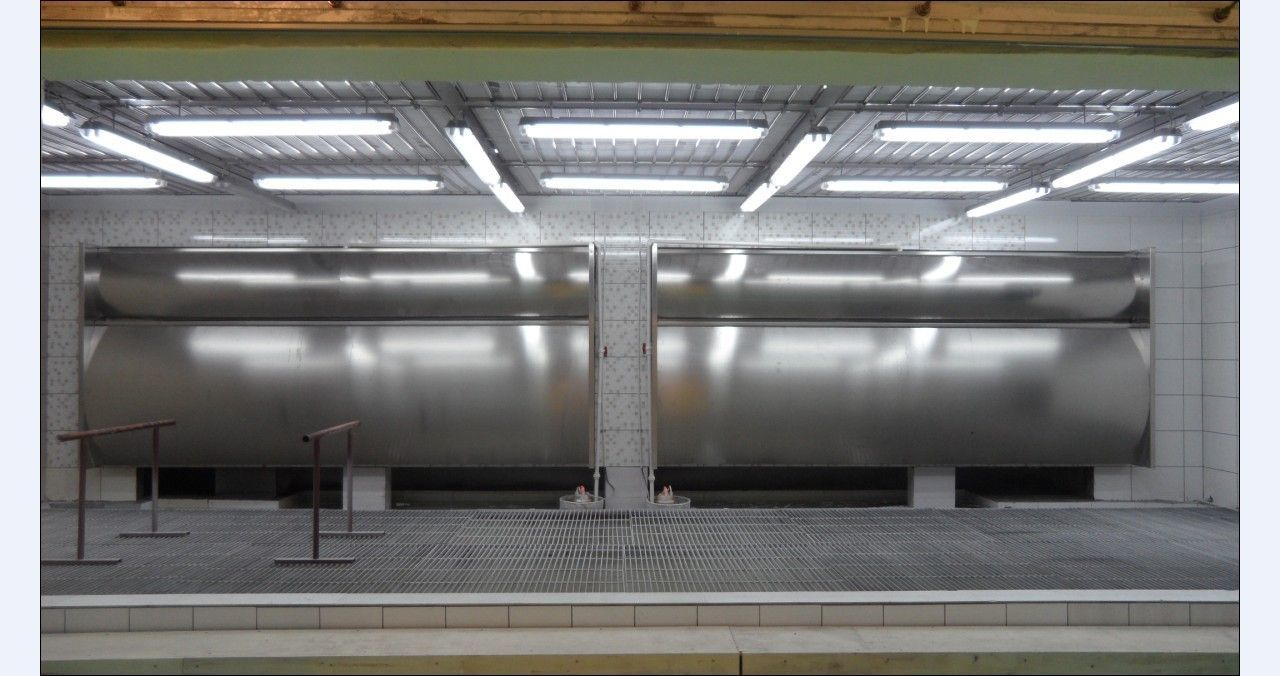

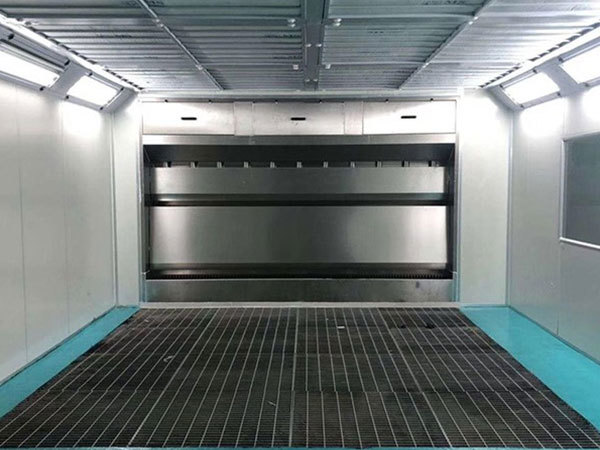

High-Volume Water Wash Spray Booth with Waterfall Filtration System for Continuous Liquid Painting Operations
Overview:
For high-production environments using significant amounts of liquid paint, the CT-HydroCapture uses a curtain of water (waterwall) to trap overspray efficiently. This method reduces fire risks and is ideal for capturing heavy, sticky paints that rapidly clog dry filters. It includes a sludge removal tank for easy maintenance.
| Feature | Specification |
| Filtration Medium | Recirculating Water Curtain & Scrubbers |
| Pump Type | Stainless Steel Submersible High-Flow Pump |
| Material | 304 Stainless Steel Tank & Water Wall |
| Water Treatment | Integrated Coagulant Dosing System (Optional) |
| Airflow Speed | > 0.5 m/s face velocity |
| Maintenance | Automated Sludge Removal Conveyor (Optional) |
1, Efficient Paint Mist Capture - Utilizes water curtain filtration technology to effectively capture 80%-95% of overspray, reducing environmental pollution and ensuring clean air in the workplace.
2, Customizable Design - Supports tailored dimensions, power, and materials (stainless steel/PP plastic, etc.) to accommodate different workpiece sizes and painting needs.
3, Energy-Saving & Eco-Friendly - Features a recirculating water system with paint coagulant (AB agent) to minimize wastewater discharge, complying with GB16297/EPA environmental standards.
4, Durable & Reliable - Made of high-quality stainless steel or corrosion-resistant PP material, resistant to rust and chemicals, ideal for automotive repair, furniture manufacturing, and industrial applications.
5, Smart Control - Optional PLC automatic control system for precise adjustment of water flow and fan speed, ensuring easy operation and energy efficiency.
6, Comprehensive After-Sales - Includes installation guidance, 1-year warranty, and lifetime maintenance, with remote technical support or on-site debugging for long-term stable operation.
Product Features
1, High-efficiency water curtain filtration system
• Multi-layer water screen design with ≥90% paint mist capture rate
• Recirculating water system minimizes wastewater discharge
2, Modular structure design
• Customizable length/width/height configurations
• Stainless steel/PP material options for various environments
3, Intelligent control system
• PLC auto-adjusts water pressure & airflow
• Touchscreen interface with real-time monitoring
4, Eco-friendly energy-saving features
• Built-in oil-water separator & paint sludge collector
• 30%+ more energy-efficient than conventional units
5, Industrial-grade safety protection
• Explosion-proof motor & spark-proof construction
• Complies with OSHA & CE safety certifications
If you have any doubt or idea,please send the inquiry,we will respond to you immediately!
