Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis

Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis

موك: 1
السعر: USD2000-USD10000/SET
التعبئة والتغليف القياسية: مع فيلم منتظم والكرتون
فترة التسليم: بعد 15 يومًا من الإيداع
طريقة الدفع: تي/تي
القدرة على التوريد: 500 مجموعة / شهر
معلومات مفصلة
مكان المنشأ
الصين
اسم العلامة التجارية
CoatTech
إصدار الشهادات
CE
رقم الموديل
خط الطلاء 14 أبريل
اسم:
خط الطلاء 14 أبريل
مزود الطاقة::
220 فولت/50 هرتز/1PH أو خيار آخر
باستخدام الطاقة::
خيار كهربائي أو آخر
المحرك::
العلامة التجارية الصينية أو العلامة التجارية للاستيراد
السيطرة على sytem::
تبديل نمط أو التحكم في شاشة اللمس PLC
لون::
خيار أبيض أو آخر
طلب::
المنتجات المعدنية
طلاء:
10-50um
خافت::
كما يتطلب
وصف المنتج

1.Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis


Product Description:


CoatTech is proud to announce the successful installation and commissioning of our latest Customized Heavy-Duty Overhead Conveyor Coating Line.

Engineered specifically for the rigorous demands of heavy machinery manufacturing, this system provides an optimized surface finishing solution for truck chassis, trailer frames, and large-scale industrial steel structures.


2.Two Big Function


1.Handling massive, awkwardly shaped metal components during the painting process has traditionally been a major bottleneck for heavy equipment manufacturers.

To solve this, our new coating line integrates a high-capacity overhead chain conveyor system.

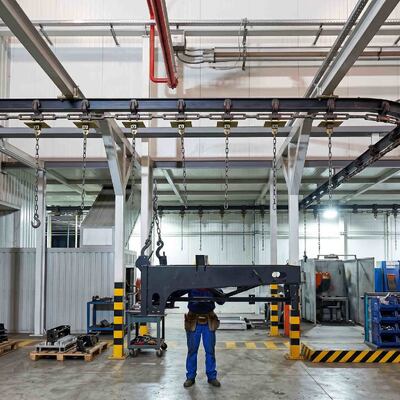

As demonstrated in our facility, the robust drop chains and custom-designed load hooks can safely and smoothly transport workpieces weighing several tons, keeping the floor space entirely clear and eliminating the need for cumbersome ground trolleys.


2.The continuous flow system allows the heavy chassis to move seamlessly from the loading area directly into our state-of-the-art spray booths and high-temperature curing ovens.

This suspended 360-degree accessibility empowers operators to apply anti-corrosive primers and topcoats flawlessly, ensuring complete coverage even in complex structural cavities.

By maintaining strict control over the airflow, paint mist filtration, and curing temperatures, this CoatTech solution dramatically increases production throughput while delivering the ultimate weather-resistant and rust-proof finish required by heavy-duty vehicles.


3.Technical Specifications:


Parameter Specification
Product Category Customized Heavy-Duty Overhead Conveyor Coating Line
Target Workpieces Commercial Vehicle Chassis, Construction Machinery Frames, Large Steel Structures
Conveyor System Type Heavy-Duty Drop Forged Rivetless Chain Conveyor
Load Capacity (Per Hook) 500 kg - 2,500+ kg (Fully customizable based on workpiece weight)
Core Process Modules Overhead Transport, Down-Draft Spray Booth, High-Temperature Curing Oven
Workpiece Accessibility 360-Degree suspended access for blind-spot-free painting
Paint Mist Filtration Multi-stage dry filter system (Water-wash/Water-curtain options available)
Compatible Coatings Anti-corrosive primers, Heavy-duty industrial topcoats, Polyurethane paints


Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 0

Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 1


Stop struggling with undersized equipment. Let our engineers design a heavy-duty material handling and

curing solution that matches the scale of your production. Send us your heaviest part dimensions for a free capacity assessment!


Custom Heavy-Duty Overhead Conveyor Coating Line for Vehicle Chassis 2
