| موك: | 1 |
| السعر: | USD8000-USD12000/SET |
| التعبئة والتغليف القياسية: | مع فيلم منتظم والكرتون |
| فترة التسليم: | بعد 15 يومًا من الإيداع |
| طريقة الدفع: | تي/تي |
| القدرة على التوريد: | 30 مجموعة / شهر |
CoatTech Premium Infrared Automotive Spray Booth: Next-Generation Paint Curing Technology
Upgrade your automotive finishing capabilities with the latest innovation in paint booth technology. Designed for high-volume body shops and industrial applications, the CoatTech Infrared Spray Booth delivers an immaculate, dust-free environment combined with rapid, energy-efficient curing.
Experience flawless finishes, reduced turnaround times, and lower operational costs with a system engineered for the highest standards of professional coating.
Core Features & Advantages

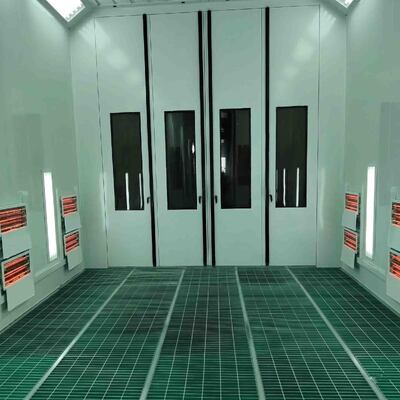

1. Advanced Infrared Curing System
Equipped with strategically integrated, high-intensity infrared heating panels along the side walls. Unlike traditional convection heating, our infrared technology directly heats the substrate and paint layers. This accelerates the curing process from the inside out, preventing surface trapping, reducing overall drying time by up to 50%, and significantly lowering energy consumption.
2. Shadow-Free High-Lumen Illumination
Achieve perfect color matching and flawless application every time. The booth features vertical, explosion-proof LED light fixtures embedded smoothly into the walls. This creates a brilliant, shadow-free environment, ensuring painters can spot even the most minor imperfections during the application process.
3. Full-Grid Downdraft Ventilation
Constructed with a heavy-duty, fully galvanized green steel grate floor. The intelligent downdraft system draws clean air from the ceiling plenum and pulls paint overspray and harmful VOCs directly downward. This protects operator health, maintains a pristine painting environment, and prevents particulate contamination on freshly painted surfaces.
4. Premium Insulated Enclosure
The robust cabin is built with high-quality, insulated wall panels designed for maximum heat retention and structural stability. The airtight design features a wide set of folding entry doors with large observation windows, accommodating everything from standard passenger vehicles to larger industrial components.
Technical Specifications
| Parameter | Specification |
| External Dimensions (L x W x H) | 7,150 x 5,550 x 3,450 mm (Customizable) |
| Internal Dimensions (L x W x H) | 7,000 x 4,000 x 2,800 mm (Customizable) |
| Heating System | Electric Infrared Heating Panels (Side/Corner Placement) |
| Max Baking Temperature: 80掳C | |
| Heating Time: 10-15 min (from 20掳C to 60掳C) | |
| Lighting System | Side Wall Lights: LED Tubes, >1000 Lux |
| Ceiling Lights: High-Efficiency LED, >1200 Lux | |
| Ventilation System | Air Circulation: Down-draft design |
| Exhaust Fan Capacity: High-efficiency centrifugal fans | |
| Floor System | Full galvanized steel grating with filter layout |
| Wall Panels | 50mm EPS/Rockwool double-skinned color steel panels |
| Filtration | Pre-filter, High-efficiency ceiling filter, Floor paint-stop filter, Active carbon exhaust filter |
Frequently Asked Questions (FAQ)
Q: What is the main advantage of infrared heating compared to traditional diesel or gas burners?
A: Infrared heating is much more energy-efficient and faster. It directly heats the painted object rather than heating the air inside the booth. This results in a faster, deeper cure, lower energy bills, and zero emissions from combustible fuels.
Q: How often do the floor and ceiling filters need to be replaced?
A: Filter lifespan depends on your workload and paint volume. Generally, floor fiberglass filters (paint-stop) should be replaced every 80-120 operating hours, while ceiling intake filters can last up to 600-800 hours. Regular maintenance ensures optimal airflow and finish quality.
Q: Can this spray booth accommodate larger vehicles like vans or light trucks?
A: Yes. While our standard dimensions comfortably fit most SUVs and passenger cars, CoatTech manufactures modular cabins. We can customize the length, width, and height of the booth to accommodate commercial vans, light trucks, and specific industrial equipment.
Q: Does the installation of the full-grid floor require excavating a pit?
A: A full downdraft system typically requires a concrete pit to house the exhaust ducting beneath the grates. However, if excavation is not possible at your facility, we can supply the booth with an elevated metal basement and drive-up ramps.
Ready to elevate your finishing process? Contact our engineering team today to discuss your specific requirements and get a customized quote for your facility.
Here is the Youtube Link video for your reference
https://youtube.com/shorts/B3tQHiFbkC8?feature=share
